Dodge Ram 2500/3500 High Steer Front Truss 2003-2024

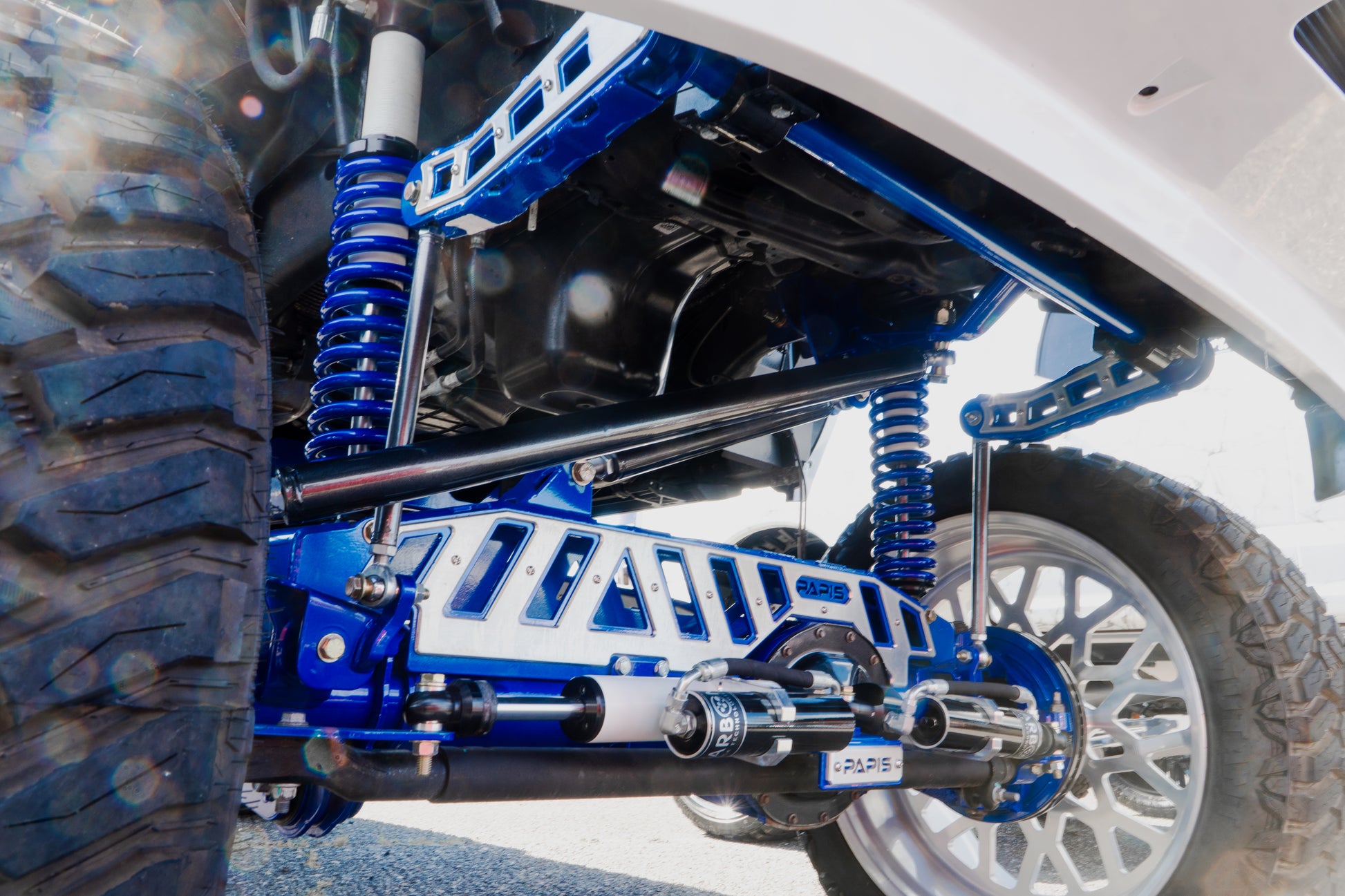

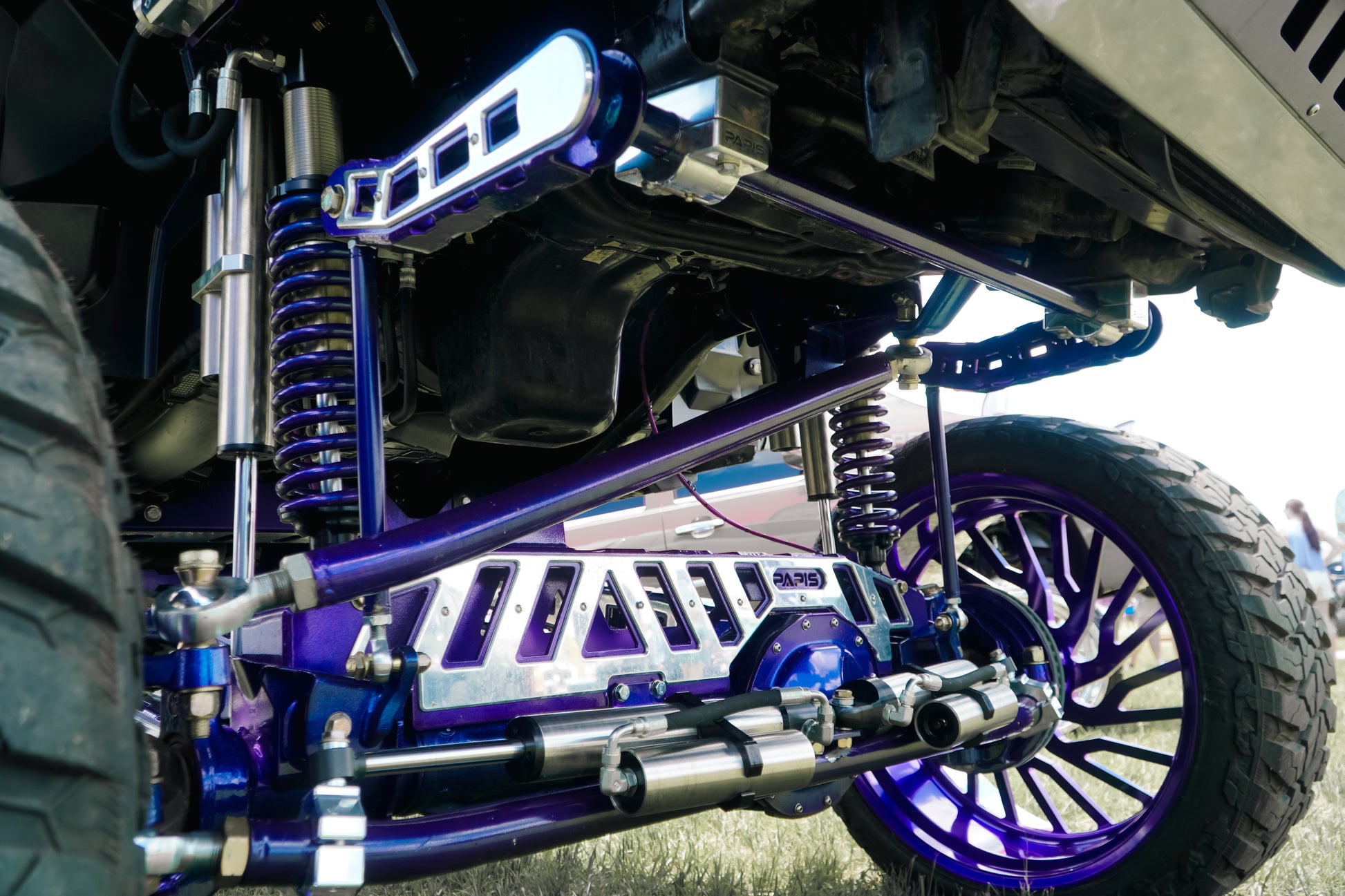

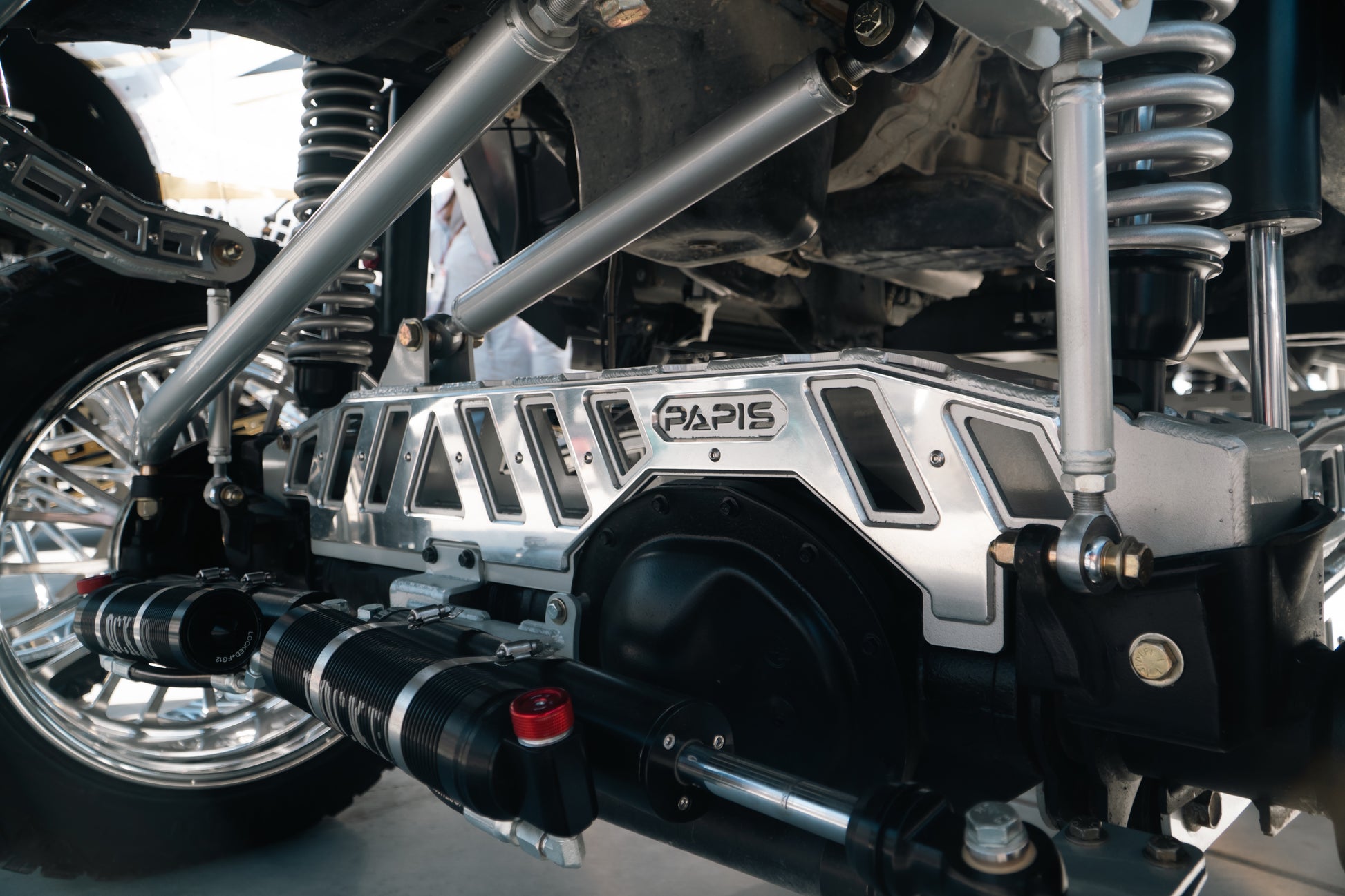

Upgrade your Ram 2500/3500 HD’s suspension and steering with our High Steer Truss System, designed for extreme lift setups and demanding off-road applications. This system offers unparalleled durability, precise steering control, and improved geometry for high-performance vehicles.

Features:

• High-Strength Construction: Fabricated from 1/4" laser-cut steel and 1/4" wall DOM tubing for exceptional durability in tough environments.
• Optimized Geometry: Improves steering geometry for trucks with 10"-16" and 18"-24" lift kits.
• Direct Bolt-On Installation: The truss is designed for a direct bolt-on application, requiring no drilling or welding for a hassle-free installation.
• Track Bar Relocation: Replaces the factory track bar (pan hard bar) with a fully adjustable heim joint track bar for improved alignment and adjustability.
• Adjustable Steering Components: Includes a fully adjustable DOM tube drag link and tie rod bar for complete steering customization.
• Billet Components: Includes billet steering stabilizer mounts for a clean, professional finish.
• High-Performance Hardware: Equipped with 2-piece PTFE 1.25" heims and Grade 8 hardware for ultimate strength and reliability.
• Customizable Design: Comes with a bolt-on truss featuring your choice of overlay to match your build.

What’s Included:

• Bolt-On Truss (with overlay options)
• Adjustable DOM Tube Track Bar (heim joint design)
• Adjustable DOM Tube Drag Link
• Adjustable DOM Tube Tie Rod Bar
• Billet Steering Stabilizer Mounts
• Grade 8 Installation Hardware
• Double-Shear Pitman Arm

Additional Requirements:

• Upper Coil Over Mounts: Required for proper installation.

Fitment:

• Compatible with Ram 2500/3500 HD trucks from 2003–2013 and 2014–2024, equipped with extreme lift kits (10"-16" and 18"-24").

Additional Notes:

• Professional alignment is recommended after installation.
• Made in the USA with premium craftsmanship and materials.

Order Now:

Enhance your Ram 2500/3500 HD with our High Steer Truss System—a complete solution for improved handling, unmatched durability, and optimized steering performance.
