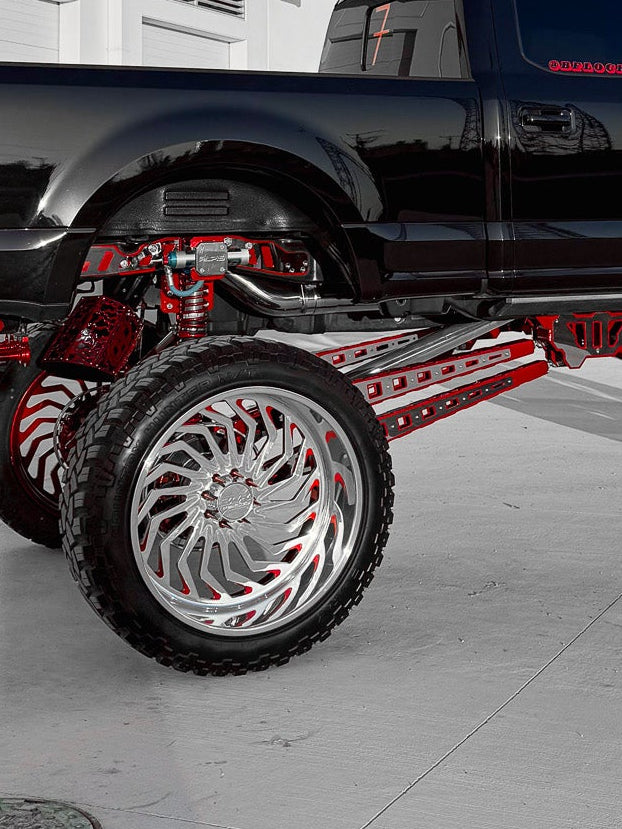

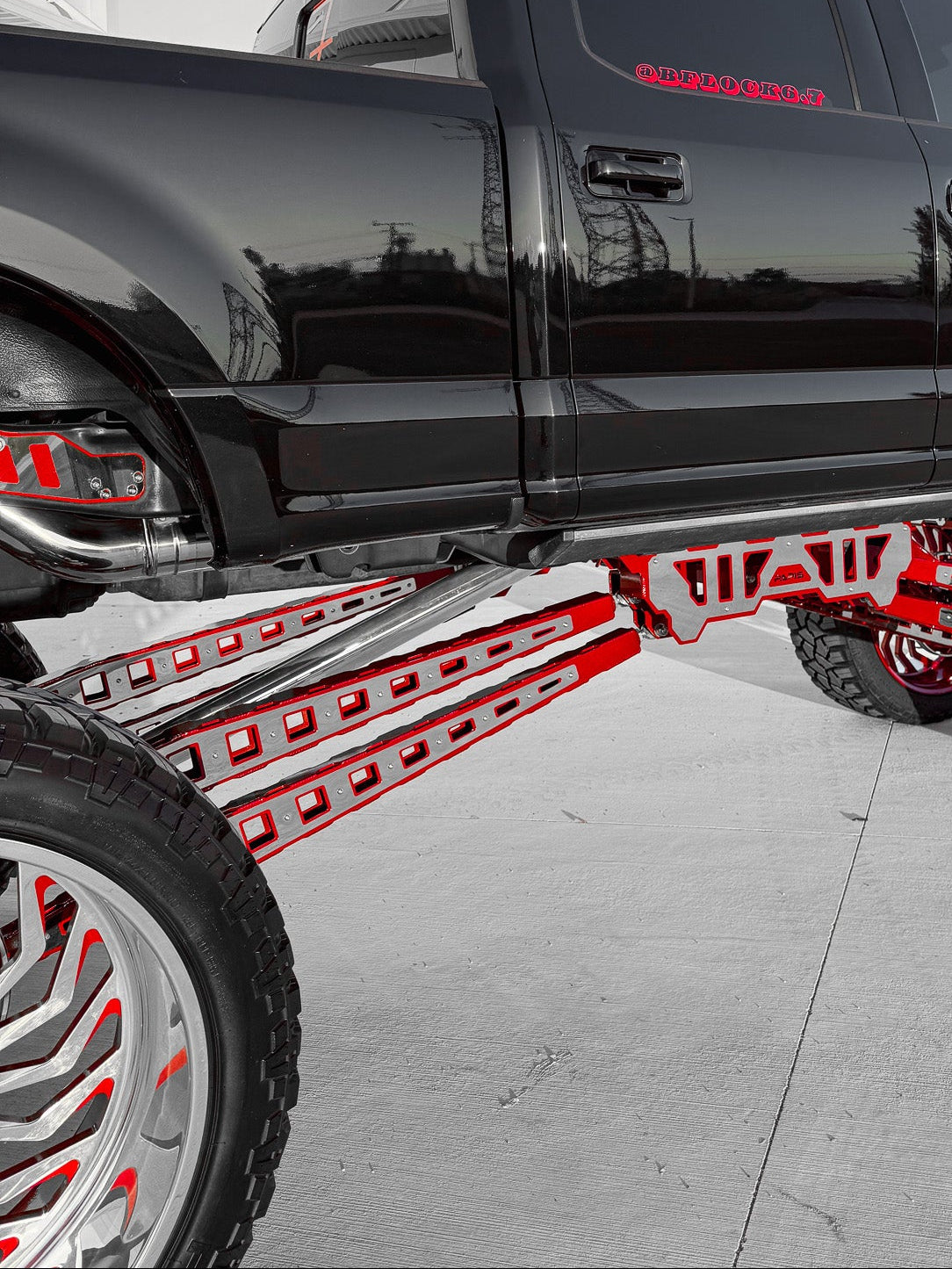

Rear Coilover Conversion Long Arm 4-Link Kit

Complete the rear suspension on your mini-cradle-equipped truck with the Papis Garage Rear Coilover Conversion Long Arm 4-Link Kit.

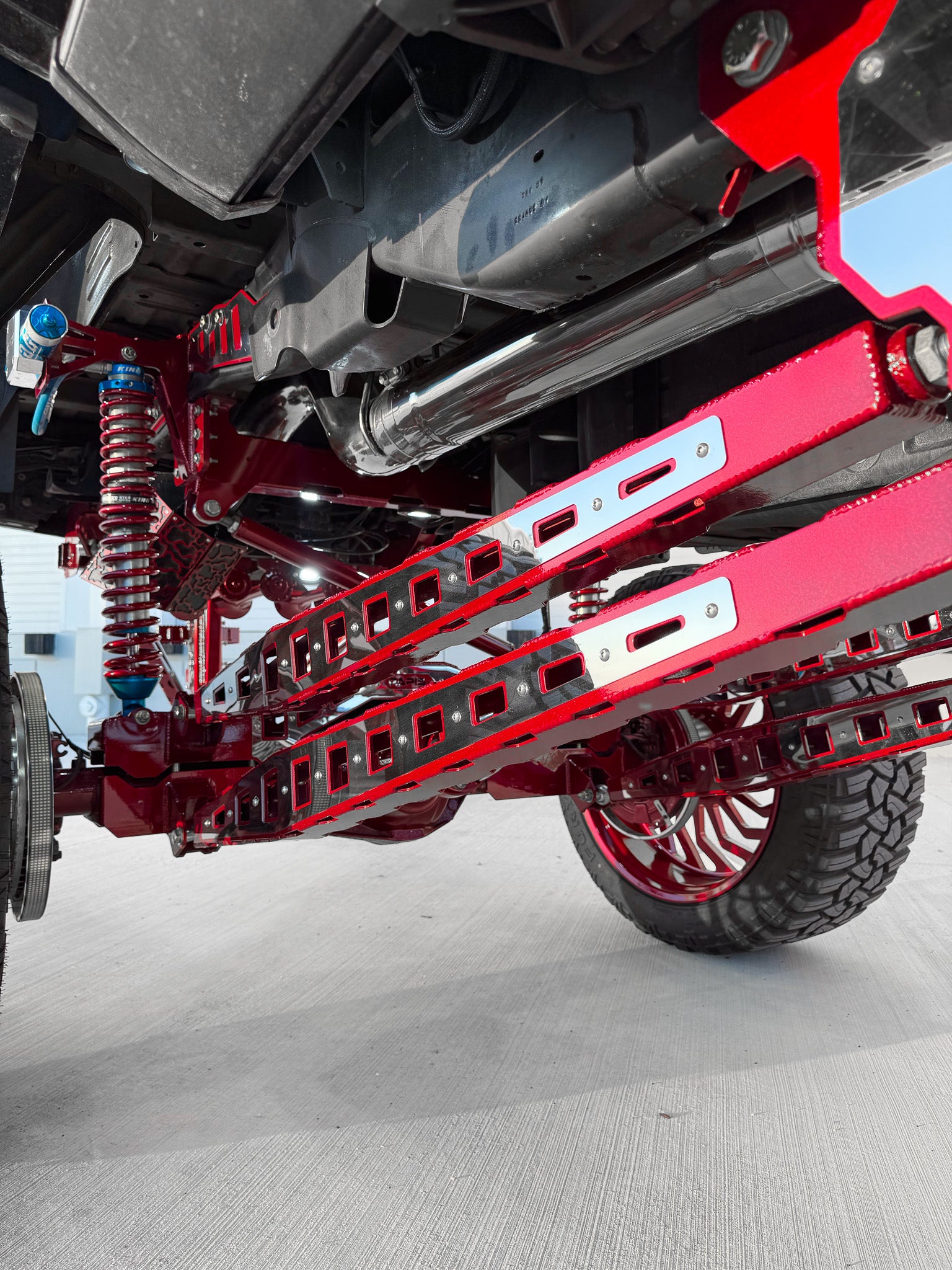

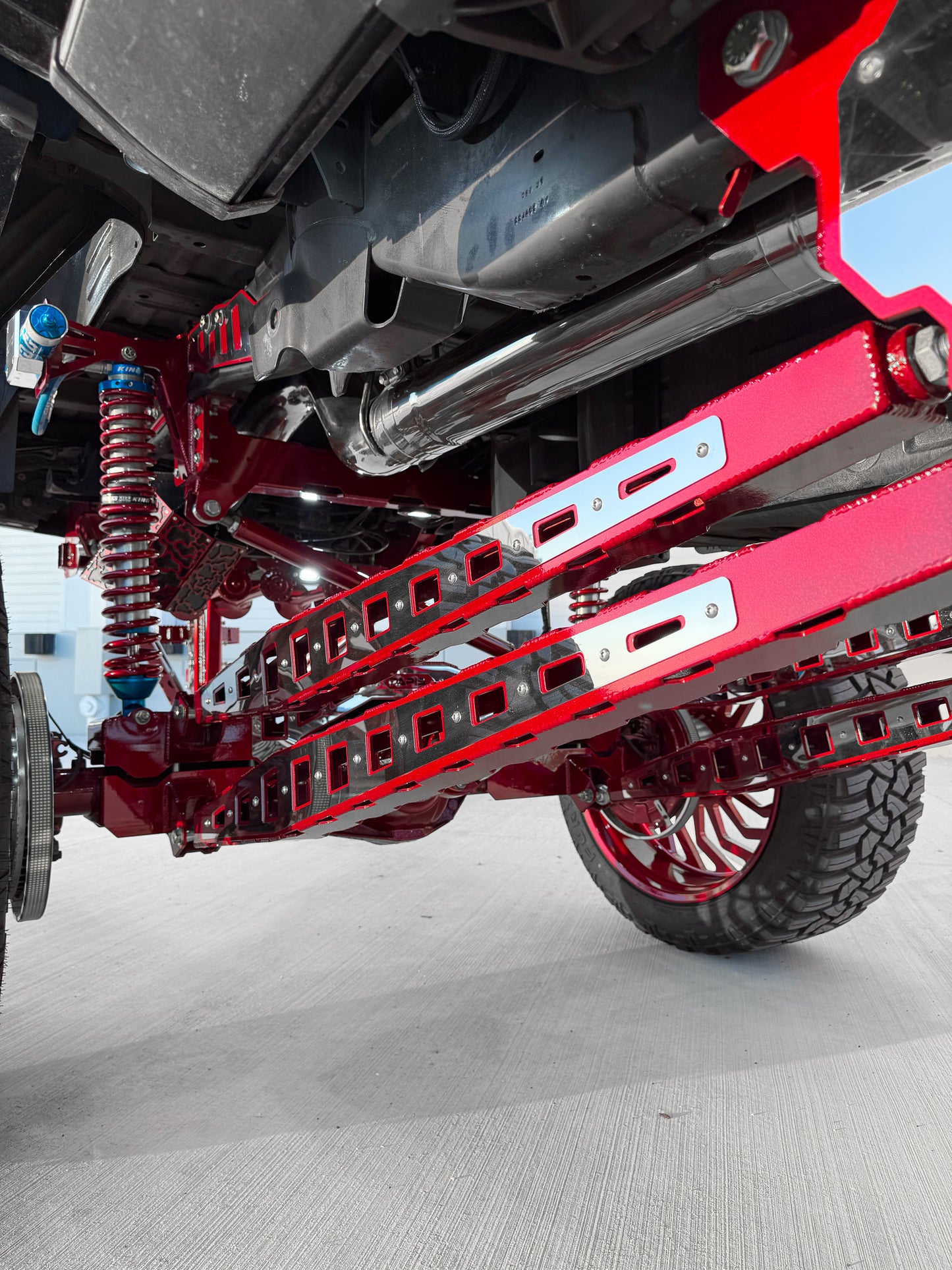

This kit is designed for customers already running a Papis Garage mini cradle and traction-bar setup. Your existing traction bars become one pair of link bars, while the two included long-arm bars complete the rear 4-link system.

The bolt-on rear truss, lower braces, and three-piece coilover bracket system provide the mounting structure needed to convert the rear suspension to coilovers. The coilover brackets install using the truck’s existing fifth-wheel mounting holes, reducing unnecessary frame modification.

Depending on the coilovers selected, this system can be configured from approximately 14 to 24 inches of lift.

Coilovers are not included and must be purchased separately.

Kit Includes

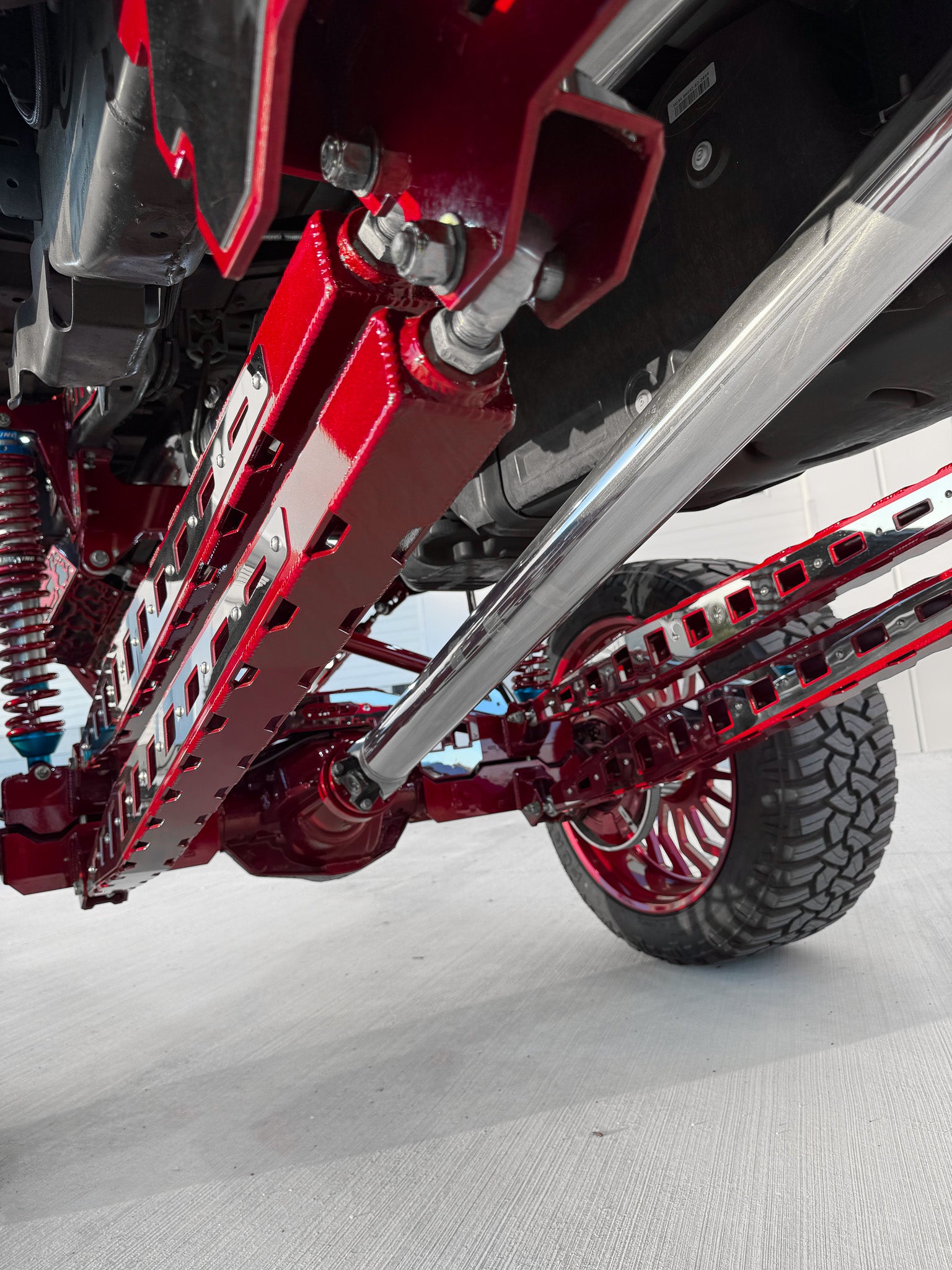

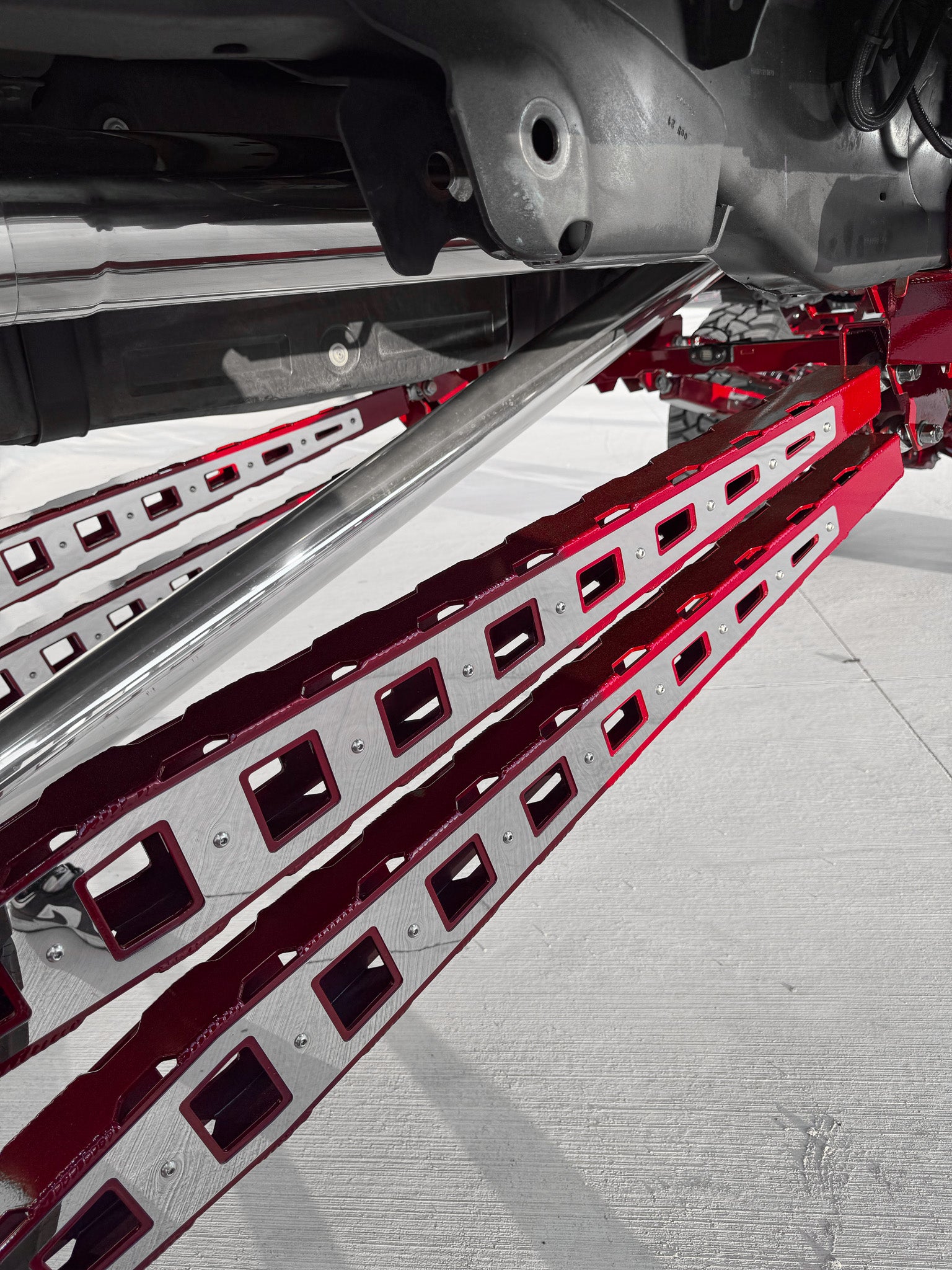

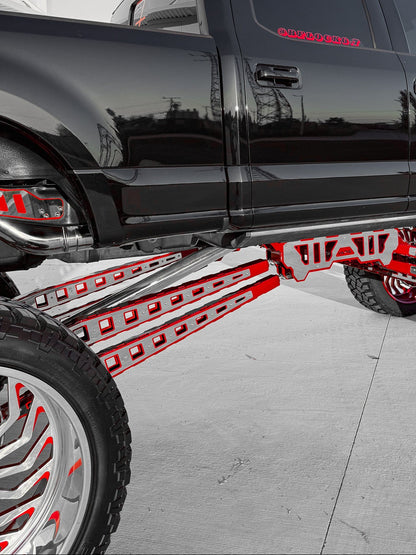

• Two additional long-arm 4-link bars
• Decorative overlays on the inside and outside of both bars

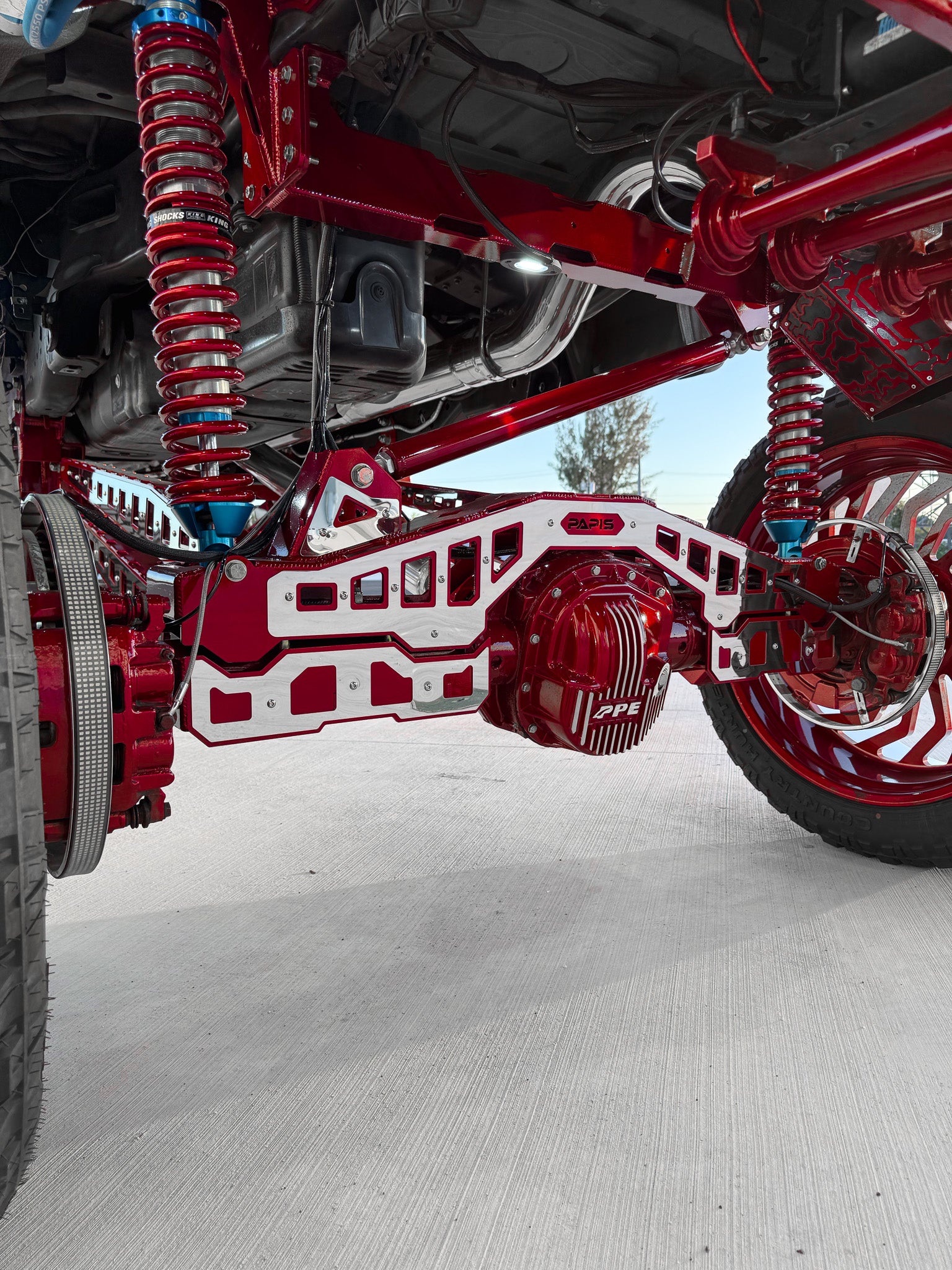

• Bolt-on rear axle truss
• Lower truss braces
• Inside and outside truss overlays

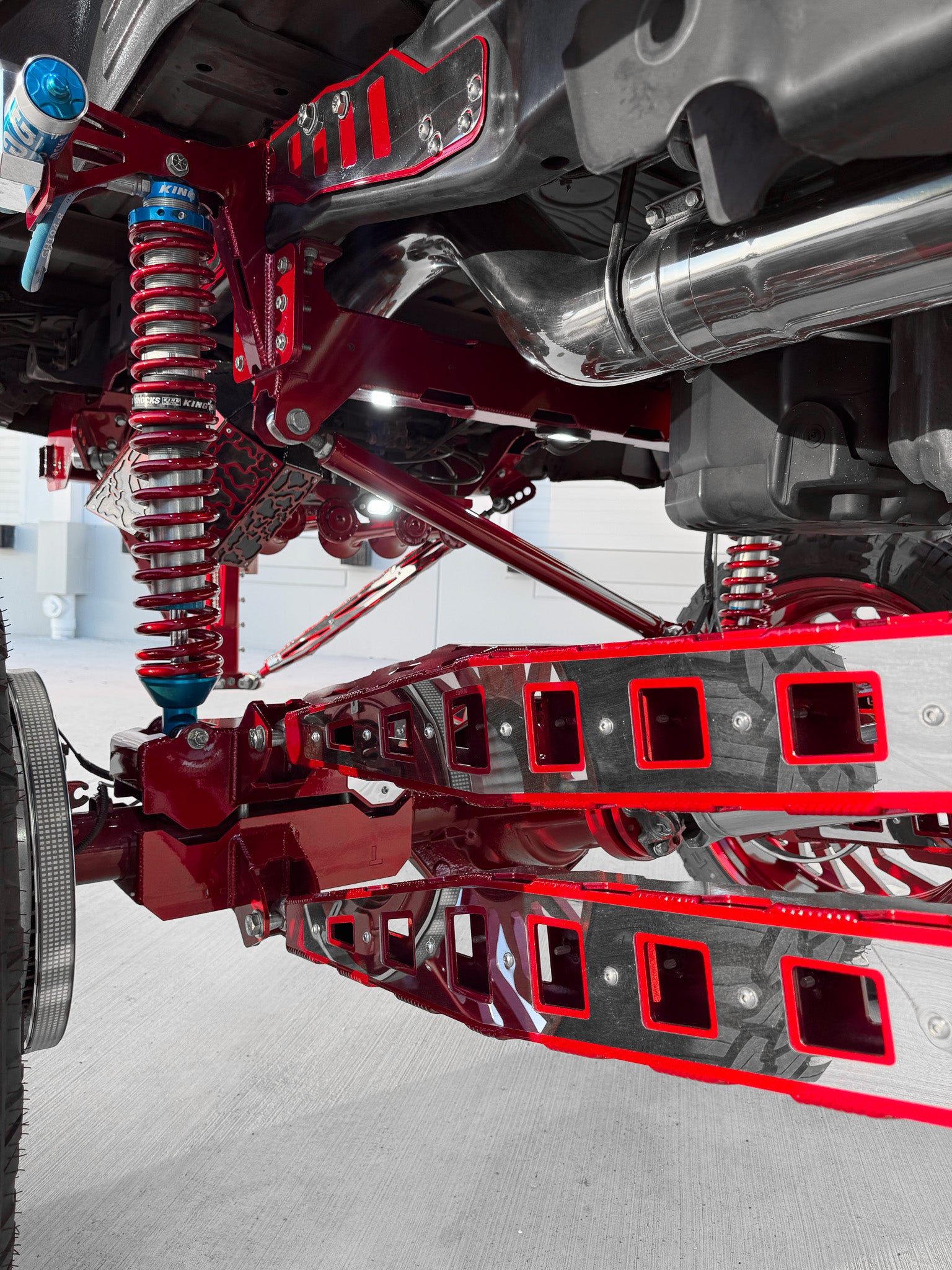

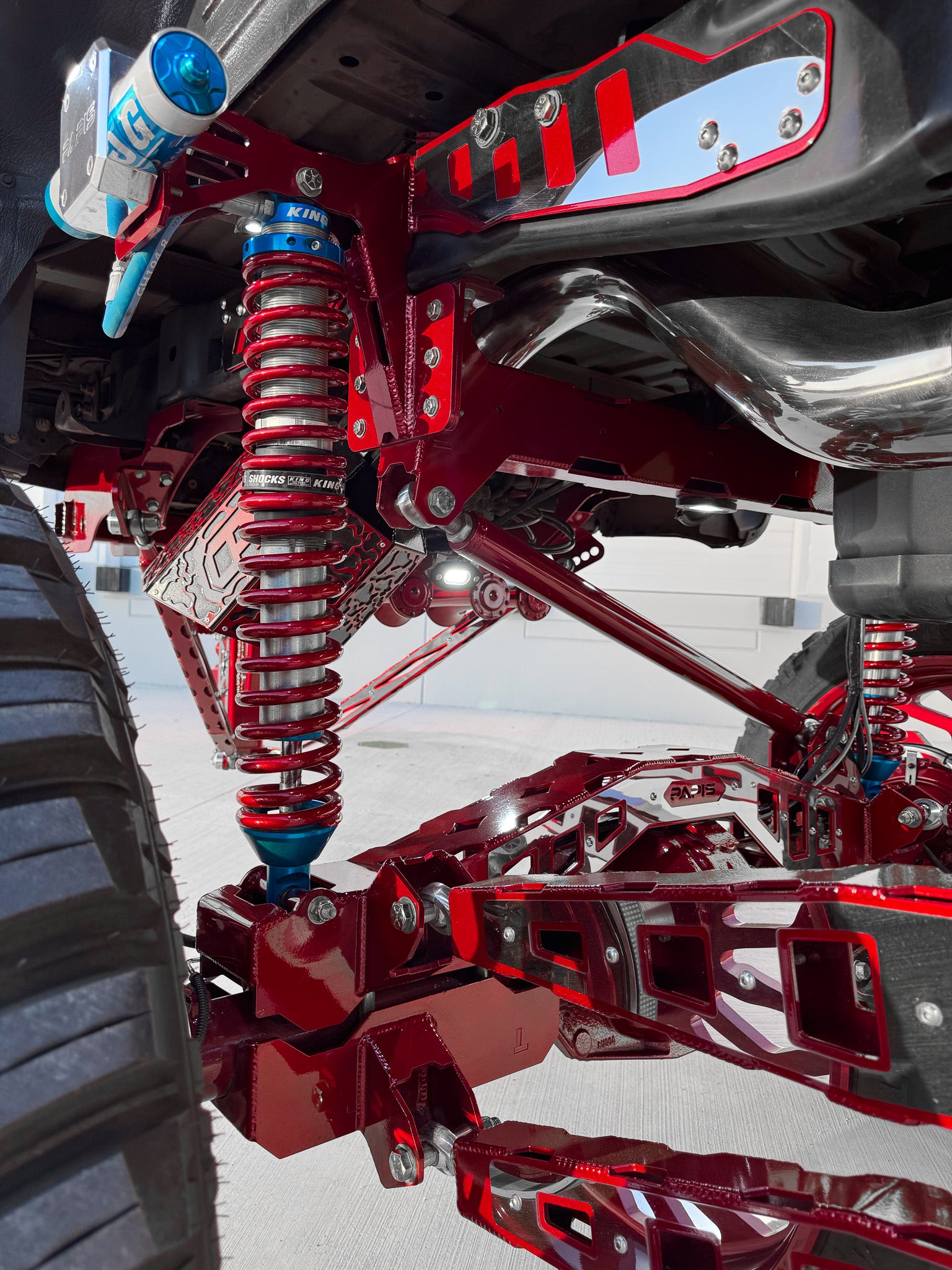

• Three-piece bolt-on rear coilover conversion bracket system

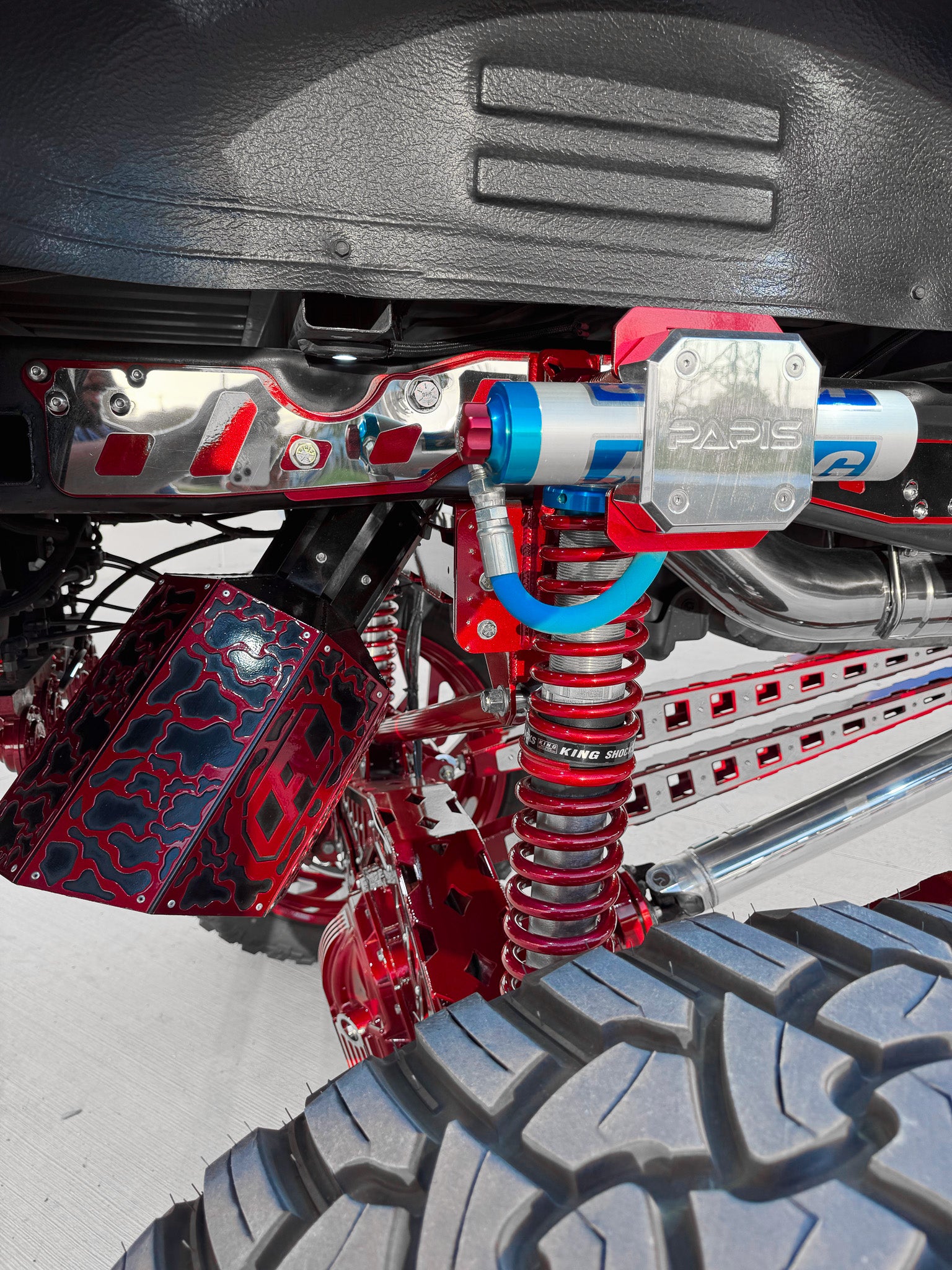

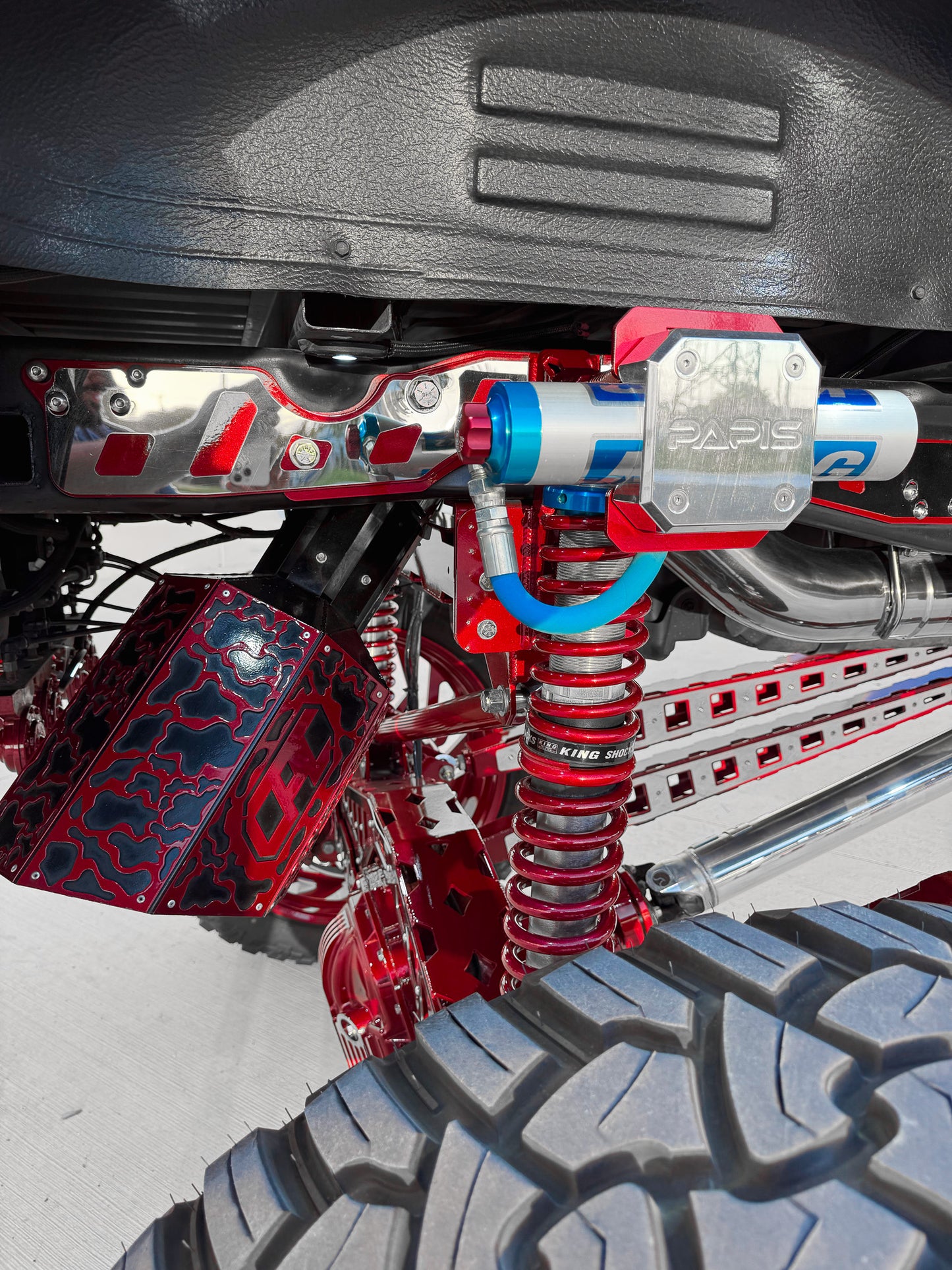

• Billet reservoir clamps designed to match the front Papis Garage coilover conversion
• DOM-tubing rear panhard bar
• Heavy-duty heim joints
• All required installation hardware

Every fabricated component is designed and manufactured in-house to match the construction, appearance, and finish of your existing Papis Garage suspension components. The matching overlays and billet reservoir clamps create a complete front-to-rear appearance while the long-arm 4-link geometry gives the truck the suspension architecture needed for a serious show-quality build.

If you already have the mini cradle and traction bars, this is the kit that brings the rear suspension together and gives your truck that final level of PAPIS wow.

Important Notes

• Designed for trucks already equipped with a compatible Papis Garage mini cradle and traction-bar system
• Existing traction bars are reused as one pair of the rear 4-link bars
• Coilovers are sold separately
• Final lift height depends on the length and specifications of the coilovers selected
• Professional installation and proper suspension setup are strongly recommended
